23.7 Generating and Sending Timecode

The command Insert, SMPTE LTC/MTC Timecode Generator (from the main menu) can be used to send a synchronization timecode from REAPER to an external device.

Kind: concept (user-guide-section) Chapter: 23 Using REAPER with Other Applications and Devices (Overview) Source: REAPER User Guide v7.70

The command Insert, SMPTE LTC/MTC Timecode Generator (from the main menu) can be used to send a synchronization timecode from REAPER to an external device. This command inserts on to the current track a media item which is used to generate the timecode.

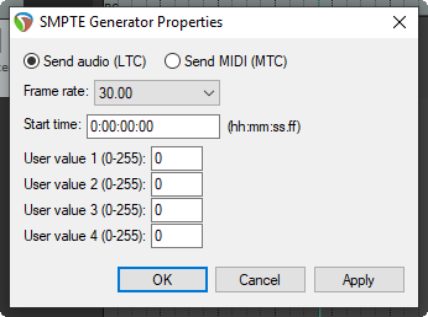

Right-click over the item and choose Source properties from the context menu to display the settings box (right).

Generating and Sending Timecode screenshot

Select LTC (linear/longitudinal time code) or MTC (MIDI time code) and configure the various parameters as required.
