Meter images

Meter images

These images form the lit and unlit states of each of the VU meters.

Kind: glossary-entry (image-type)

These images form the lit and unlit states of each of the VU meters. You can also have them function as a mask over the default meters by using the alpha channel (i.e. transparency = stock meter).

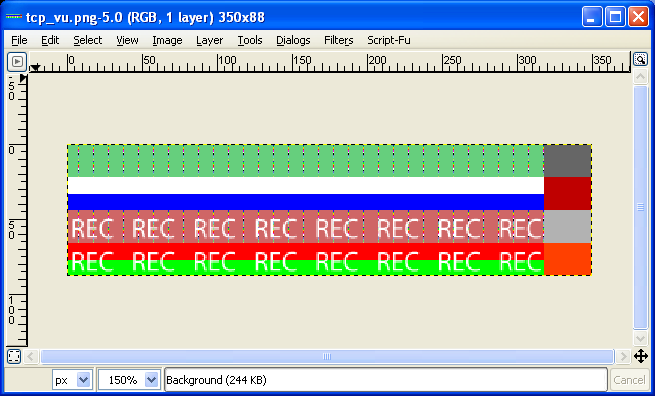

• tcp_vu.png: track meter: This image should be at least 64 pixels wide (W) and a multiple of 8 pixels high (H). It consists of 8 slices of image, each W pixels wide and H/8 pixels tall. The rightmost 32 pixels of each slice will be scaled to fit the "clip indicator" for the meter, and the leftmost W-32 pixels will fill the rest. The ordering of slices is as follows:
  • Left channel, dim meter, normal
  • Right channel, dim meter, normal
  • Left channel, lit meter, normal
  • Right channel, lit meter, normal
  • Left channel, dim meter, record armed
  • Right channel, dim meter, record armed
  • Left channel, lit meter, record armed
  • Right channel, lit meter, record armed

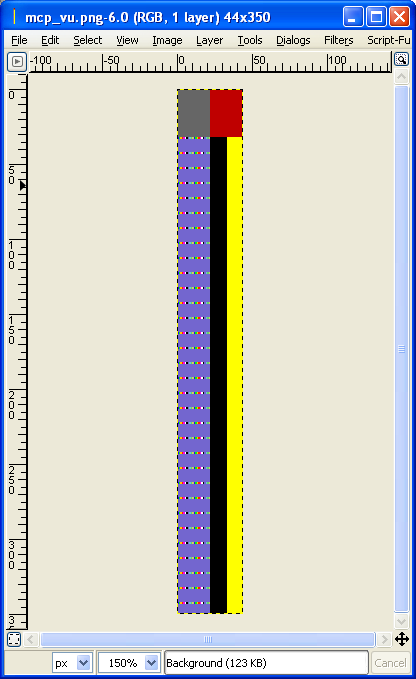

• mcp_vu.png: mixer meter: This image should be a multiple of 4 pixels wide (W), and at least 64 pixels tall (H). It consists of 4 slices of image, each W/4 pixels wide and H pixels tall. The topmost 32 pixels of each slice will be scaled to fit the clip indicator area, and the bottommost H-32 pixels will fill the rest of the meter. The ordering of slices is as follows:
  • Left channel, dim meter
  • Right channel, dim meter
  • Left channel, lit meter
  • Right channel, lit meter

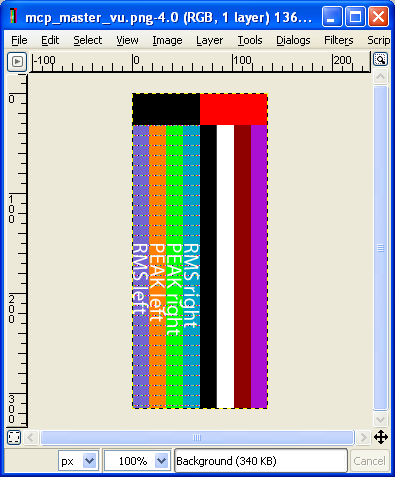

• mcp_master_vu.png: mixer master meter: This image should be a multiple of 8 pixels wide (W), and at least 64 pixels tall (H). It consists of 8 slices of image, each W/8 pixels wide and H pixels tall. The topmost 32 pixels of each slice will be scaled to fit the clip indicator area, and the bottommost H-32 pixels will fill the rest of the meter. The ordering of slices is as follows:
  • Left channel, RMS, dim
  • Left channel, peak, dim
  • Right channel, RMS, dim
  • Right channel, peak, dim
  • Left channel, RMS, lit
  • Left channel, peak, lit
  • Right channel, RMS, lit
  • Right channel, peak, lit
